Technical Specifications
Complete hardware specifications of NoorConnect Smart Prayer Mat
Complete Technical Specifications
| Dimensions | 120 cm x 70 cm x 0.6 cm (unrolled) · Rollable for storage |
|---|---|
| Weight | Approx 2 kg (including control box) |
| Material | 5-Layer Construction: 200g TENCEL™ Top Layer · Dual Shock-Absorbing Layers · FSR Sensor Layer · Non-Slip Bottom Layer · Aviation-grade Anodized Aluminum Control Box |
| Main Chip | Espressif ESP32-S3 (industrial-grade IoT flagship chip) |
| Sensor System | Flexible Fabric FSR Pressure Sensing Array (detects standing · bowing · prostration · sitting) |
| Battery | Dual 18650 Lithium Battery · 4000mAh · 15+ hours battery life · USB-C Charging |
| Speaker | 5W 8Ω High-Quality Speaker + DAC/AMP Audio Processing |
| Connectivity | Bluetooth 5.0 · OTA Wireless Firmware Upgrade Support |

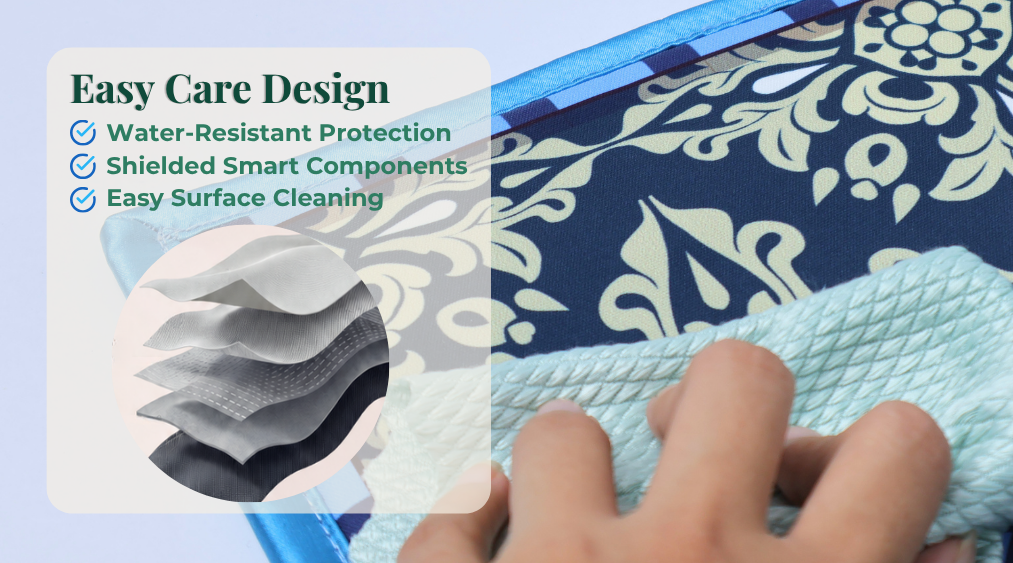

| Water Resistance | Dual-layer waterproof protection helps prevent water damage after wudu. |
| Warranty | 1-year warranty on control module and sensor layer · OTA continuous evolution |
FSR Flexible Fabric Sensor System Explained
1. Head Zone (Prostration Detection)
Detects forehead contact during Sajdah (prostration), ensuring correct prostration posture.
2. Left Hand Zone
Detects hand placement, assists hand posture guidance during Jalsah (sitting).
3. Right Hand Zone
Detects hand placement, assists hand posture guidance during Jalsah (sitting).
4. Left Knee Zone
Detects knee contact during Ruku (bowing) and Sajdah, confirms correct posture.
5. Right Knee Zone
Detects knee contact during Ruku (bowing) and Sajdah, confirms correct posture.
6. Left Foot Zone
Detects foot placement during Qiyam (standing) and sitting positions.
7. Right Foot Zone
Detects foot placement during Qiyam (standing) and sitting positions.

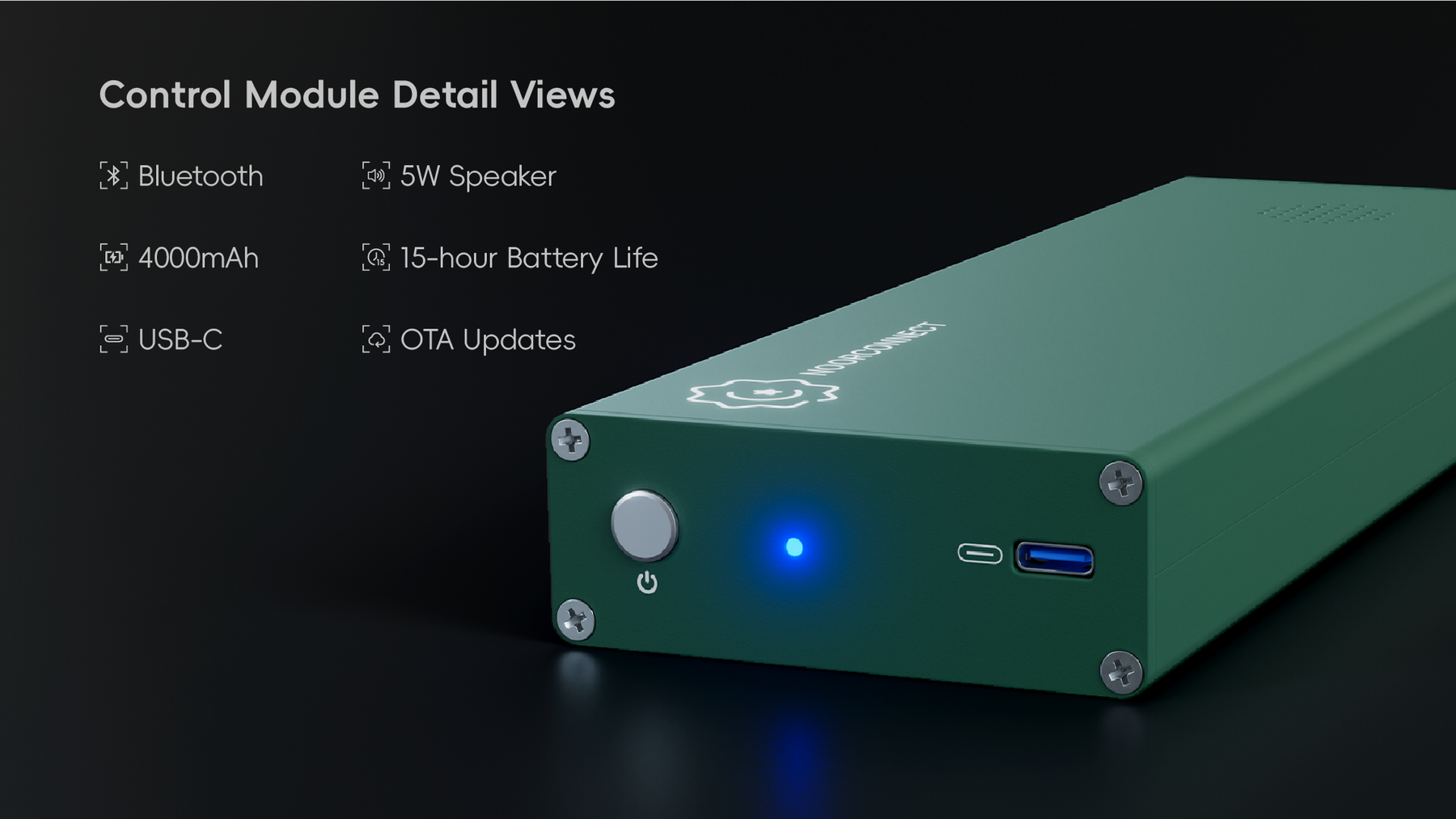

ESP32-S3 · Intelligent Computing Core
The control module features an Espressif ESP32-S3 chip with precision EMI and thermal shields. It serves as the computing center between the mat and the app, responsible for: real-time sensor data processing · low-latency Bluetooth communication · secure OTA firmware upgrades. This is not an ordinary consumer electronics chip it is a top-tier industrial IoT solution.
OTA Firmware Upgrades · Continuous Evolution
Your NoorConnect supports wireless OTA firmware upgrades. Without changing hardware, you will receive new features, performance optimizations, and prayer content updates (new duas, Quran chapters). The product continuously evolves and becomes smarter over time.

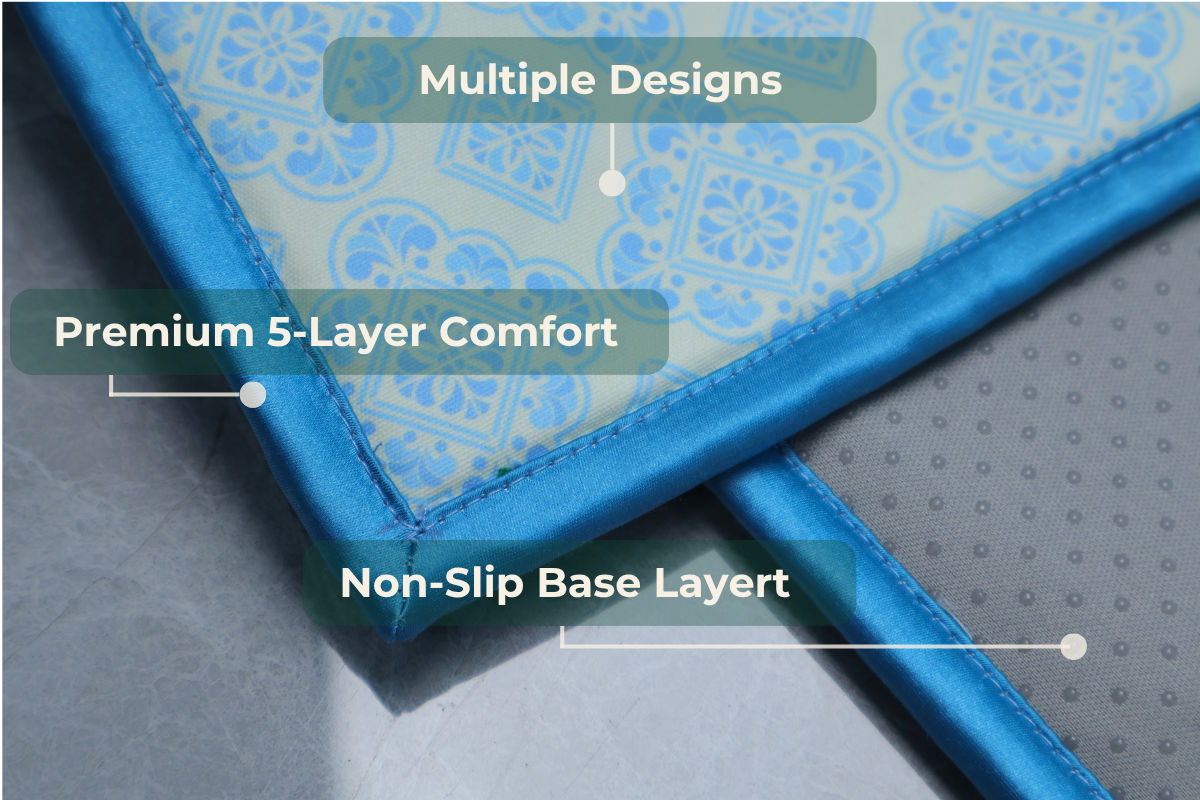

5-Layer Construction · TENCEL™ Surface · Shariah Compliant

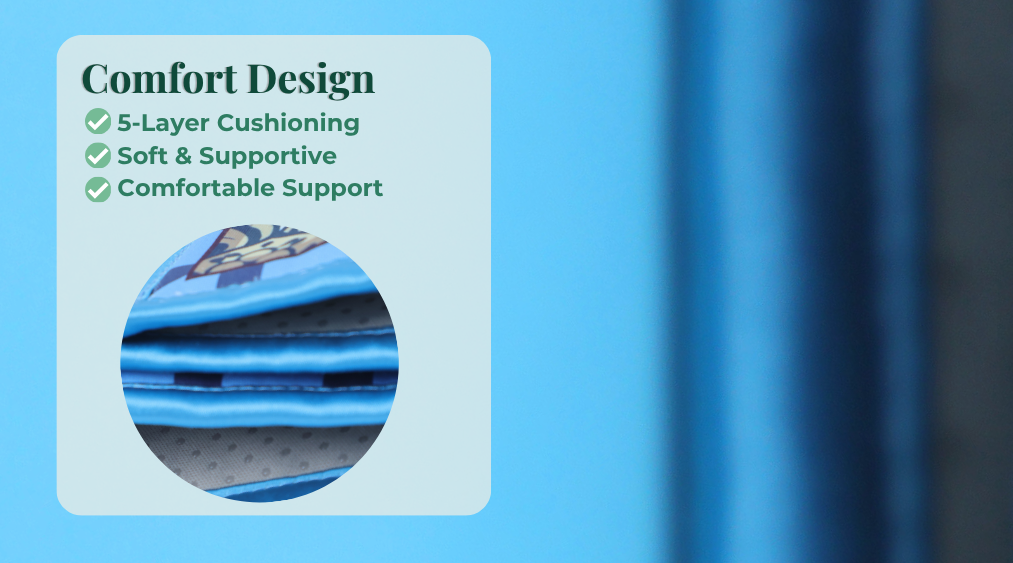

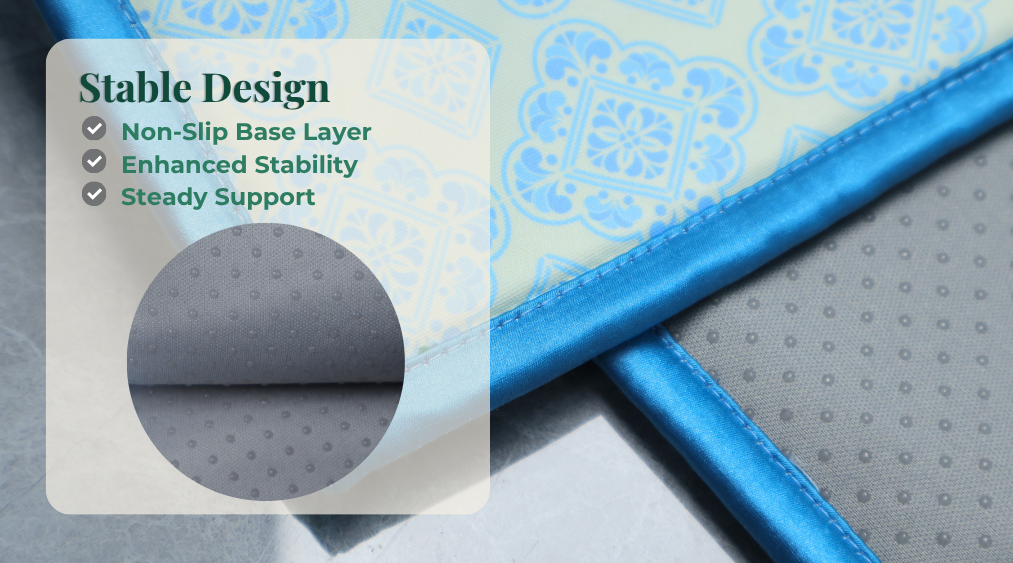

Made with advanced 5-layer technology: 200g TENCEL™ top layer providing a cool, silky-smooth, skin-friendly feel; dual shock-absorbing layers reducing impact on knees and joints; flexible fabric FSR sensor layer accurately detecting prostration and movement; non-slip bottom layer guaranteeing mat stability. TENCEL™ is derived from natural wood pulp, eco-friendly and biodegradable. The control box features aviation-grade anodized aluminum with precision EMI and thermal shields.
